Model 40.10 special features:

Automatic temperature calibration, (effected automatically before each distillation run without the need of external calibration equipment).
Level follower with stepper motor and
Automatic calibration of the volume measurement, zero point and/or 100 ml.
Low mass / low volt heating.
Accuracy: +/- 0,1 ml volume, +/- 0,01°C temperature.
Level follower with cooling/heating system, range 0 – 60°C.
Distillation range 0 – 450°C.
Calculation of cetane index.
100and 200 ml measuring cylinders useable, consequently 100 and 200 ml test samples may be distilled.
"door open" sensor.
built-in environment-friendly Peltier elements for cooling and heating.
built-in automatic fire-extinguishing system for connection to an external Nitrogen (N2) supply.

automatic-dry-point-detection-system for solvents, including thermocouple, 200 ml flask, PTFE plug, and accessories.
Emergency ”STOP ALL” switch.
New, slim design.
Learning Program.

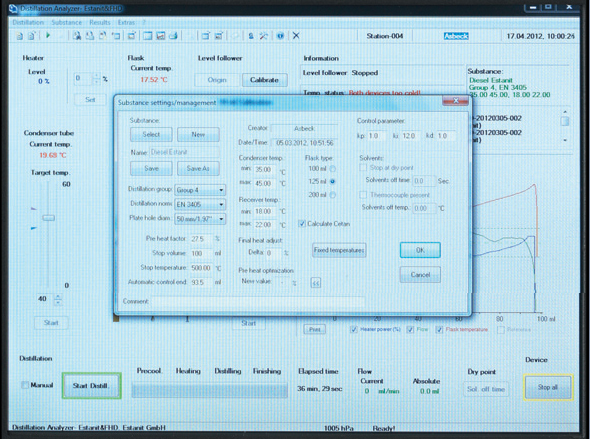

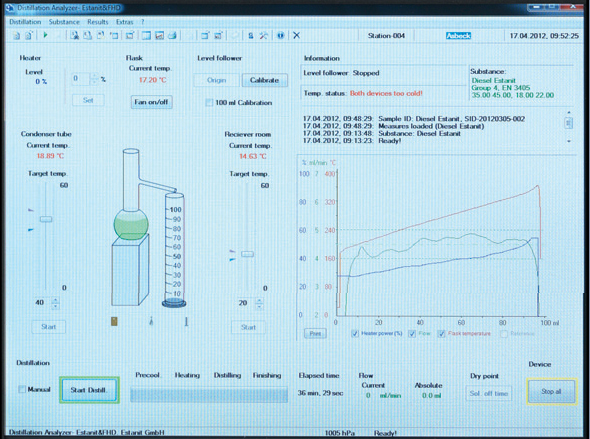

Built-in, Windows-based PC, with 10,4“ TFT active color LCD-Display with Touch-Screen for a most comfortable operation of the analyzer, including:

– Intel Atom microprocessor.

– 16 GB compact flash card.

– Ethernet interface for intranet connection.

– USB plugs for possible connections of:

– Keyboard.

– Mouse / trackball.

– Printer.

– Software package.

– Windows software.

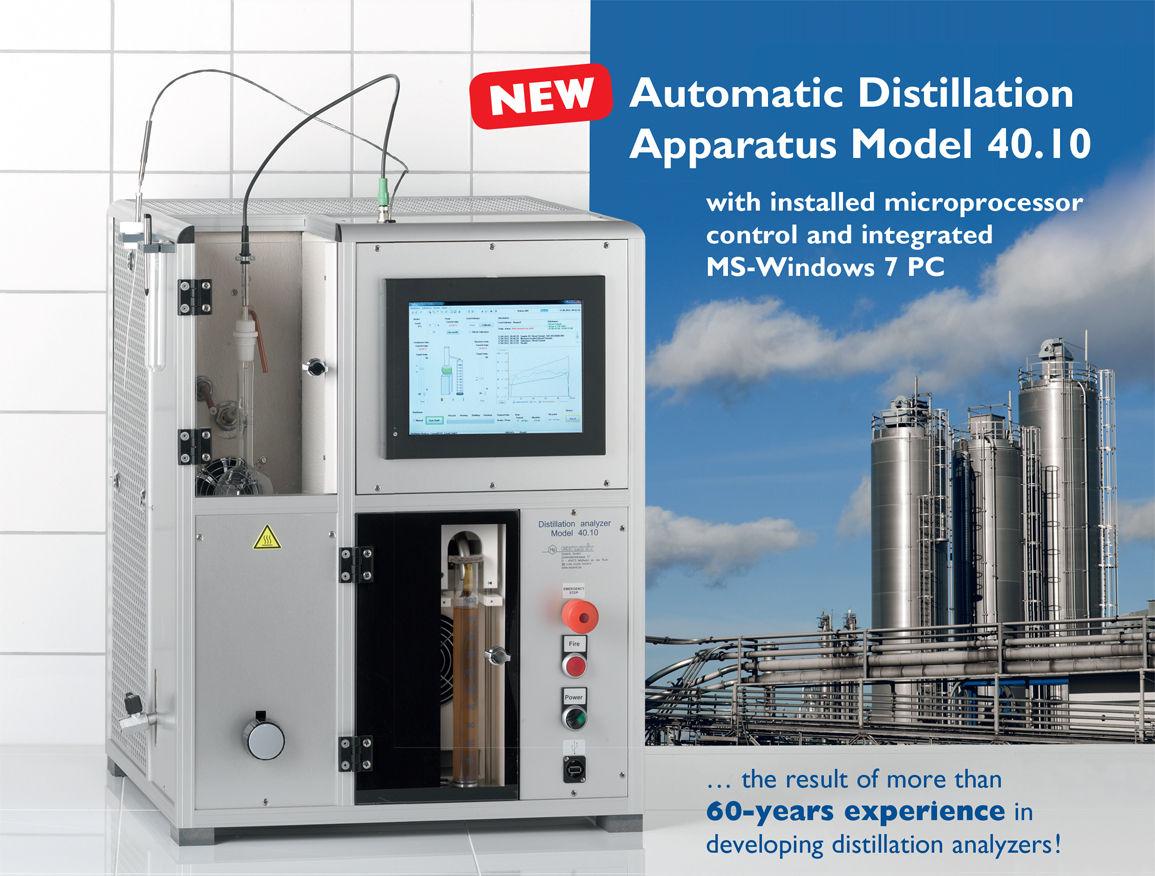

NEW Automatic Distillation Apparatus Model 40.10

with installed microprocessor control and integrated MS-Windows 7 PC used for distillation products, solvents, and crude oil in accordance the following standards:

ASTM D86 (group 0-4), ASTM D216, ASTM D285 (modified), ASTM D447, ASTM D1078 (internal standardized with solvents and group 7 and 8), IP 123, ISO 3405 and DIN 51751.

Multiple units may be linked to a central PC.

The units are programmed with all necessary distillation parameters. All units can operate independently.

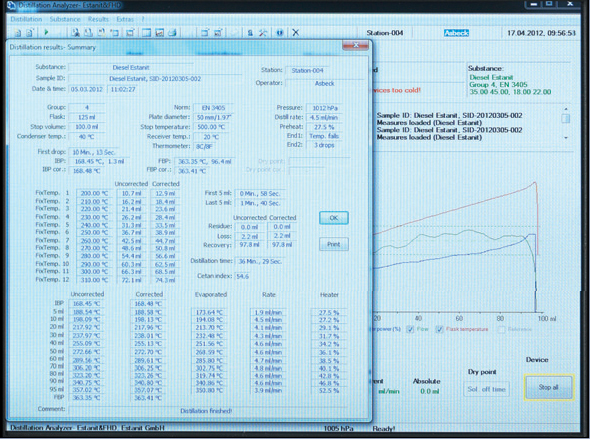

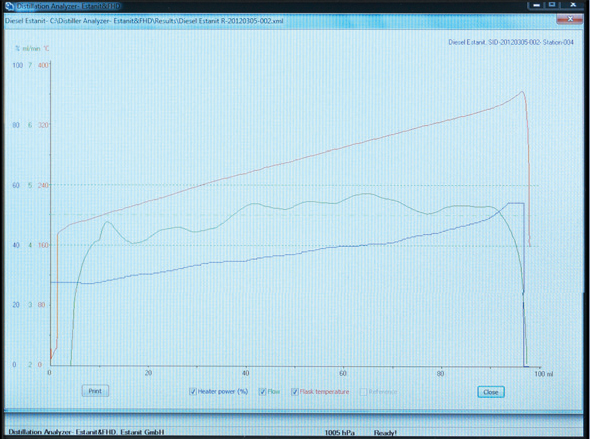

All relevant distillation data is stored on the built-in PC and can optionally be stored on a network device, e.g. a server, NAS or dedicated storage device or USB devices.

Example of different distillations:

ASTM D86	group 0,1,2,3: Distillation of hydrocarbon up to 300°C FBP, e.g. all type of petrol, aviation, turbine fuel etc.
ASTM D86	group 4: Distillation of diesel fuel, gas oil, furnace oil, heavy product etc, up to 450°C FBP.
ASTM D1078	group solvents. (visual - manual dry point-detection).
ASTM D1078	group solvents (automatic dry point detection).
ASTM D1078	group 7 and 8 (modified dry point detection).
ASTM D285	(modified), group 6: Distillation of crude oil

Main voltage:	110 ~ 235 V AC, 50 ~ 60 Hz, ± 10% (wide range input).
Operation voltage:	24 V DC.
Connecting cable:	approx. 2 m long.
Required power input:	approx. 2,0 kW.
Recommended main fuse:	16 A lag.
Dimensions approx.:	width 515 mm, depth 500 mm, height 670 mm.
Weight:	approx. 56,0 kg.
Ambient Temperature:	16°C ~ 32°C (60°F ~ 90°F).
Humidity:	10 % – 65%.

Each of our analyzers will be delivered with the following standard accessories

for immediately operation:

– Distillation flask 125 ml

– Distillation flask 200 ml

– Ceran plate with hole 32 mm [1]

– Ceran plate with hole 37,5 mm [1]

– Ceran plate with hole 50 mm [1]

– Resistance thermometer Pt 100 with cable and plug.

– Special graduated receiver cylinder complete with metal base.

– Wiper for condenser tube.

– Instruction manual printed in English.

: Khalid; Created: 29 January 2019

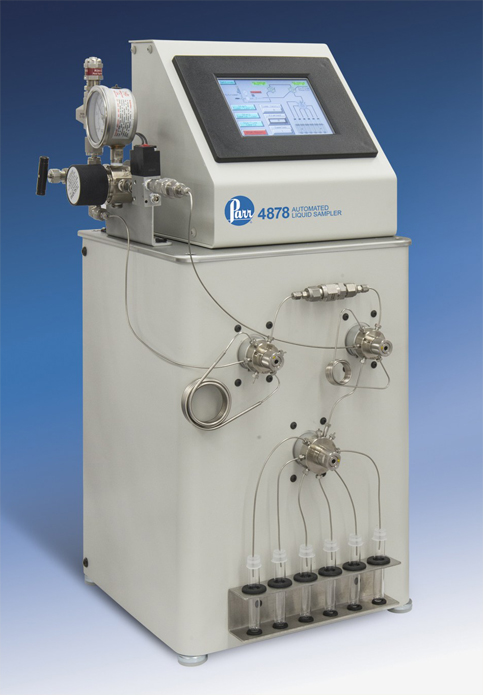

A safe and reliable method for collecting multiple liquid samples from heated and pressurized reactors has been sought for many years. Parr Instrument Company is pleased to introduce the Parr 4878 Automated Liquid Sampler which can extract up to six liquid samples at a user-defined interval without the need for the continued presence of an operator.

Controlled through a user-friendly touchscreen, a series of precision switching valves allows collection and deposition of samples with consistent volumes into individual vials. The 4878 can operate up to the maximum working pressure of all standard Parr reactors and pressure vessels. A multi-step loop sequence ensures clearing of the reactor dip tube between samples to yield samples representative of the bulk reactor fluid.

Features of the Parr 4878 Automated Liquid Sampler include:

Touchscreen controller with easy-to-navigate graphical displays.
Compact footprint 14” wide x 16” deep (35cm x 40cm).
Standalone design compatible with any new or existing Parr reactors and pressure vessels.
User-definable parameters including time between samples, number of samples, and number of loop sequences.
Various sample loop volumes available to accommodate a wide variety of sampling scenarios.
Capability to connect with mobile devices on both iOS and Android platforms.
Customizable design – contact Parr Technical Service for additional options to fit your requirements.

: Khalid; Created: 28 January 2019

Introduction

Bronkhorst High-Tech B.V., the European market leader in thermal Mass Flow Meters/Controllers and Electronic Pressure Controllers, has many years experience in designing and manufacturing precise and reliable measurement and control devices. With a wide range of instruments, Bronkhorst® offers innovative solutions for many different applications in many different markets. The instruments are made to customers’ specification, in various styles, suitable for use in laboratory, industrial and hazardous areas, in such diverse applications as semiconductor and analytical installations, to name but two.

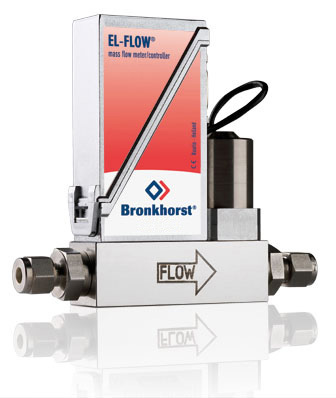

EL-FLOW®Select series for Laboratory and Instrumentation
EL-FLOW®Select series Mass Flow Meters and Controllers for gas applications have a housing designed for laboratory and clean processing conditions. The instruments are truly unique in their capability to measure and control flow ranges between 0,014…0,7 ml/min and 8…1670 ln/min with pressure rating between vacuum and 400 bar – all in one range of instruments. This versatility in flow ranges and in operating conditions has ensured that the EL-FLOW®Select series remains our most popular and field-proven of instruments.
